PCB, also called printed circuit board, printed circuit board. Multi-layer printed board refers to a printed board with more than two layers. It is composed of connecting wires on several layers of insulating substrates and pads for assembling and soldering electronic components. The role of insulation.The following is about Cross Blind Buried Hole PCB related, I hope to help you better understand Cross Blind Buried Hole PCB.

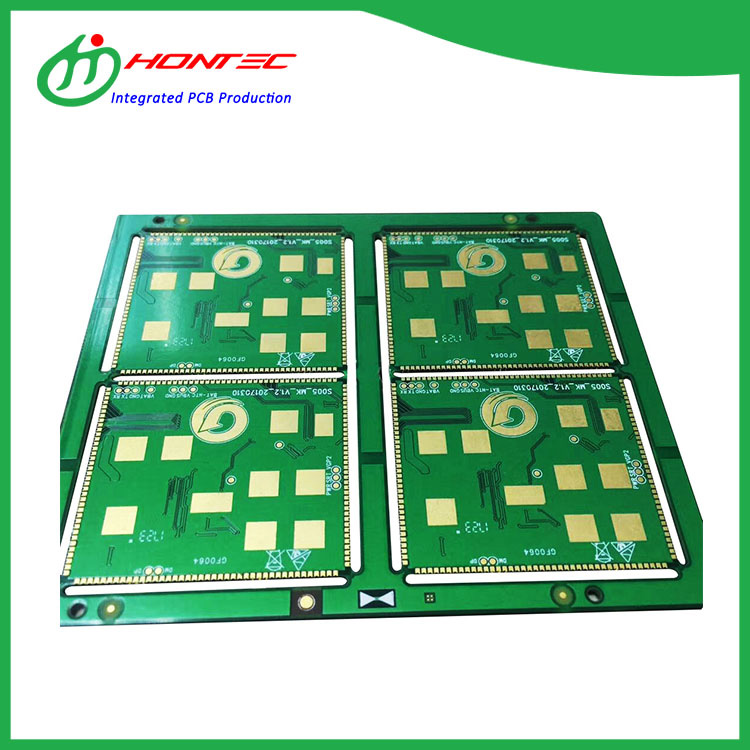

Quick Details of Cross Blind Buried Hole PCB
Place of Origin:Guangdong, China
Brand Name:Game machine PCB Model Number:Rigid-PCB
Base Material:ShengYi
Copper Thickness:1oz Board Thickness:1.0mm
Min. Hole Size:0.1mm Min. Line Width:3.5mil Min. Line Spacing:3.5mil
Surface Finishing:ENIG
Number of layers:6L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 7 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
