In 1961, Hazelting Corp. of the United States published Multiplanar, which was the first pioneer in the development of multilayer boards. This method is almost the same as the method of manufacturing multilayer boards by using the through-hole method. After Japan stepped into this field in 1963, various ideas and manufacturing methods related to multi-layer boards were gradually spread all over the world. The following is about 14 Layer High TG PCB related, I hope to help you better understand 14 Layer High TG PCB.

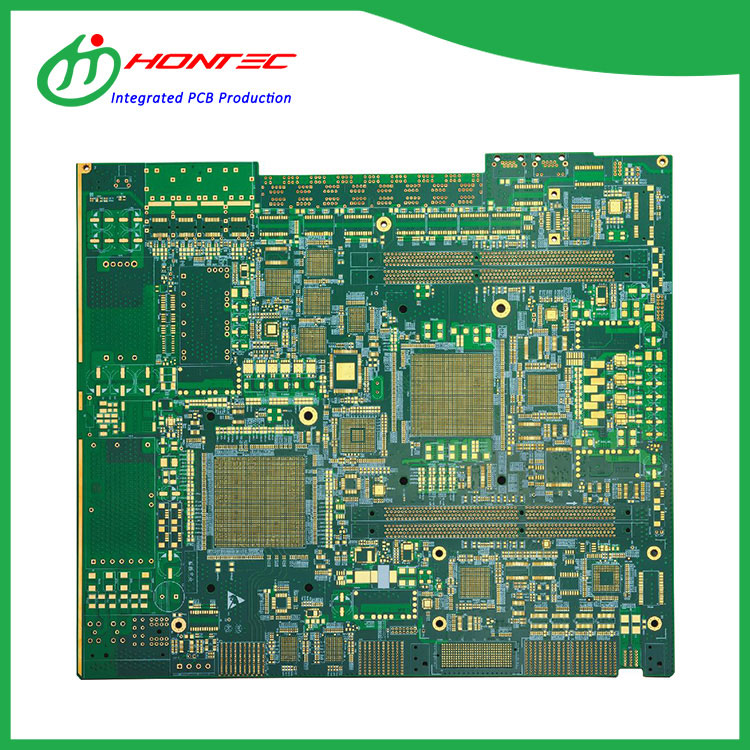

Quick Details of 14 Layer High TG PCB
Place of Origin:Guangdong, China
Brand Name:Multi-layer PCB Model Number:Rigid-PCB
Base Material:ITEQ
Copper Thickness:1oz Board Thickness:1.6mm
Min. Hole Size:0.2mm Min. Line Width:4mil Min. Line Spacing:4mil
Surface Finishing:ENIG
Number of layers:8L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 10 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
