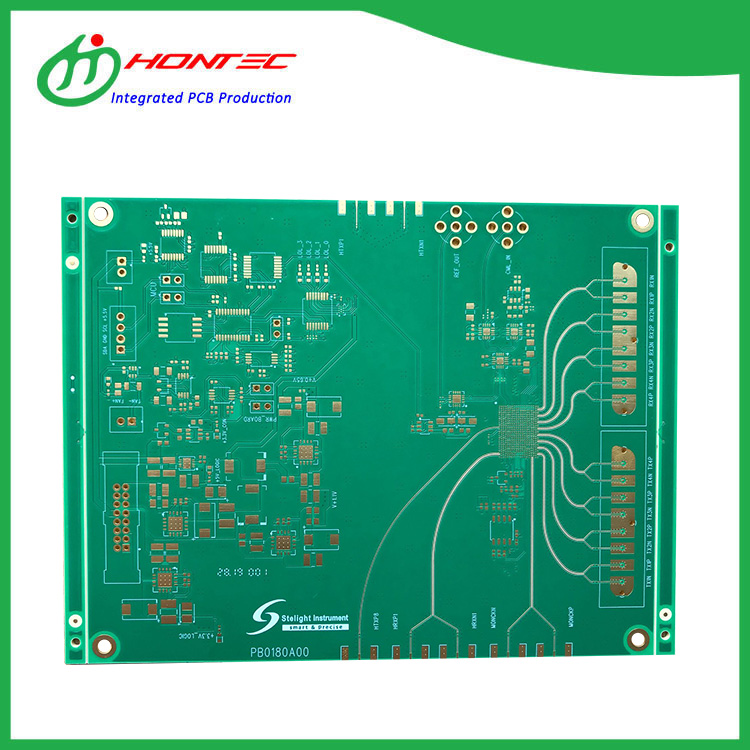

TU-943R High-speed PCB - when wiring the multi-layer printed circuit board, as there are not many lines left in the signal line layer, adding more layers will cause waste, increase certain workload and increase the cost. To solve this contradiction, we can consider wiring on the electrical (ground) layer. First of all, the power layer should be considered, followed by the formation. Because it is better to preserve the integrity of the formation.
Quick Details of TU-943R High-speed PCB
Place of Origin: Guangdong, China
Brand Name: TU-943N High-speed PCB Model Number: Rigid-PCB
Base Material: TUC
Copper Thickness: 1oz Board Thickness: 1.8mm
Min. Hole Size: 0.1mm Min. Line Width: 3.5mil Min. Line Spacing: 3.5mil
Surface Finishing: ENIG
Number of layers: 10L PCB Standard: IPC-A-600
Solder Mask: Green
Legend: White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 14 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
