EM-528K HDI PCB The signal may cross the logic level threshold many times during the transition, resulting in this type of error. Multiple crossing logic level threshold errors are a special form of signal oscillation, that is, signal oscillation occurs near the logic level threshold. Multiple crossings of the logic level threshold will cause logic function disorder. Causes of reflected signals: excessively long traces, unterminated transmission lines, excessive capacitance or inductance, and impedance mismatch.The following is about EM528K HDI Circuit Board related, I hope to help you better understand EM528K HDI Circuit Board.

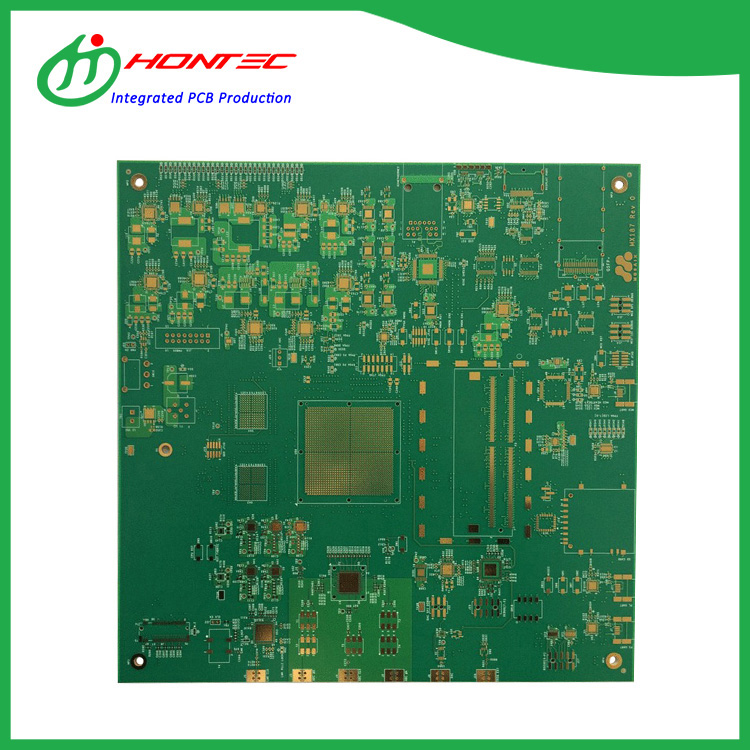

Quick Details of EM528K HDI Circuit Board
Place of Origin:Guangdong, China
Brand Name:EM-528K HDI PCB Model Number:Rigid-PCB
Base Material:EMC
Copper Thickness:1oz Board Thickness:1.2mm
Min. Hole Size:0.1mm Min. Line Width:3.5mil Min. Line Spacing:3.5mil
Surface Finishing:ENIG
Number of layers:12L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 14 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
