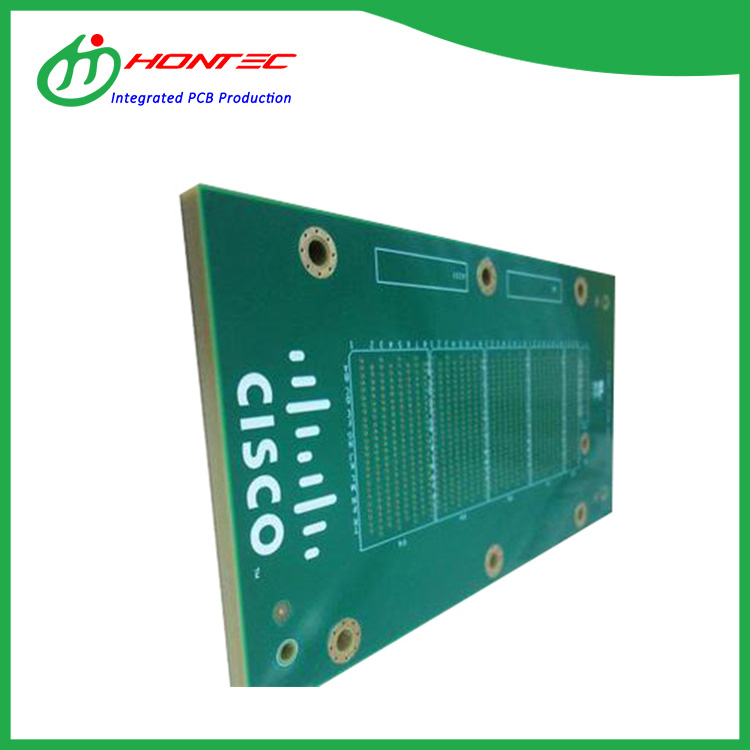

TU-883 PCB The branch length in high-speed TTL circuits should be less than 1.5 inches. This topology takes up less wiring space and can be terminated with a single resistor match. However, this wiring structure makes the signal reception at different signal receiving ends asynchronous. The following is about 6mm Thick TU883 High speed Backplane related, I hope to help you better understand 6mm Thick TU-883 PCB.
Quick Details of TU-883 PCB
Place of Origin:Guangdong, China
Brand Name:Communication backplane Model Number:Rigid-PCB
Base Material:TUC
Copper Thickness:1oz Board Thickness:3mm
Min. Hole Size:0.1mm Min. Line Width:2.5mil Min. Line Spacing:2.5mil
Surface Finishing:ENIG
Number of layers:18L PCB Standard:IPC-A-600
Solder Mask:Blue
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 14 days

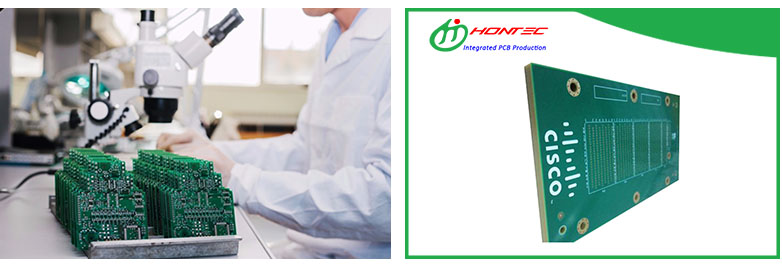

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
