In the design of 13 layer R5775G high-speed PCB, the main problems that must be considered are signal integrity, electromagnetic compatibility and thermal noise. Generally, when the signal frequency is higher than 30MHz, the signal distortion must be prevented. When the frequency is higher than 66MHz, the signal integrity must be analyzed.

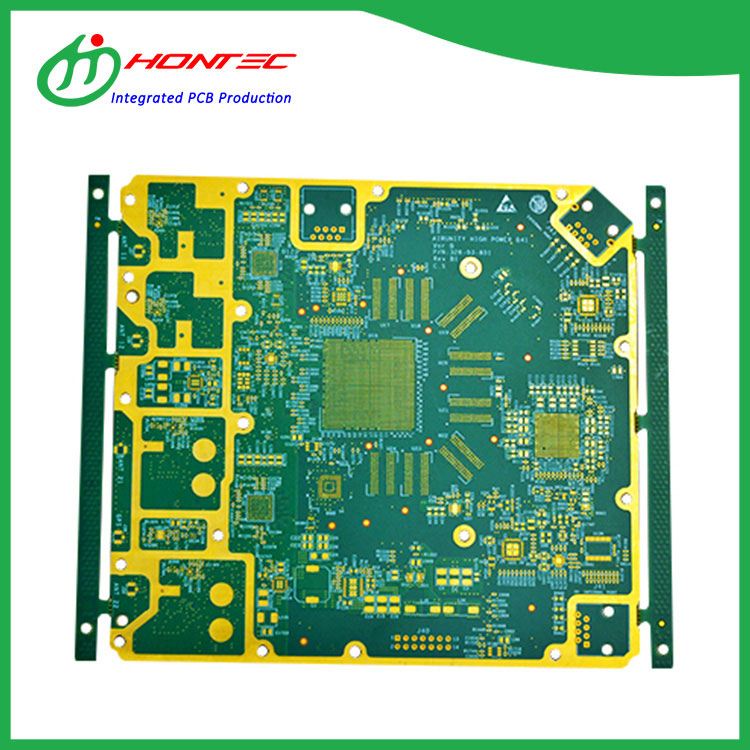

Quick Details of 13 layer R5775G high-speed PCB
Place of Origin: Guangdong, China
Brand Name: 13 layer R5775G high-speed PCB Model Number: Rigid-PCB
Base Material: Megtron
Copper Thickness: 1oz Board Thickness: 1.8mm
Min. Hole Size: 0.1mm Min. Line Width: 3mil Min. Line Spacing: 3mil
Surface Finishing: ENIG
Number of layers: 13L PCB Standard: IPC-A-600
Solder Mask: Green
Legend: White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 14 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
