The high-frequency mixed-press printed circuit board includes an aluminum base layer and an insulating and thermally conductive layer. The circuit board is provided with mounting holes. The bottom of the aluminum base layer is bonded and connected to the carbon cladding through a silicon rubber layer. The aluminum base layer, the insulating and thermally conductive layer, and the silicon rubber layer A rubber layer is adhesively connected to the outer end of the carbon cladding, and kraft paper is bonded to the bottom of the carbon cladding, which can prevent moist moisture from contaminating it, avoiding it from being eroded, saving costs, and improving efficiency. The following is about Rogers 4350B PCB related, I hope to help you better understand Rogers 4350B PCB.

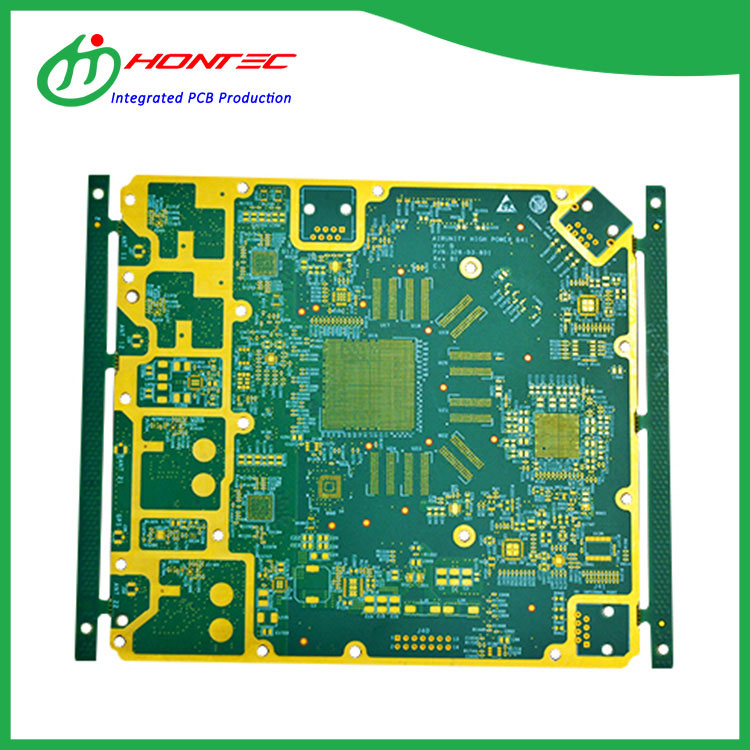

Quick Details of Rogers 4350B PCB
Place of Origin:Guangdong, China
Brand Name:High frequency mixed PCB Model Number:Rigid-PCB
Base Material:Rogers and ITEQ
Copper Thickness:1oz Board Thickness:1.2mm
Min. Hole Size:0.2mm Min. Line Width:4.5mil Min. Line Spacing:4.5mil
Surface Finishing:ENIG
Number of layers:8L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 10 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
