Signal transmission occurs at the moment when the signal state changes, such as rise or fall time. The signal passes a fixed time from the driving end to the receiving end. If the transmission time is less than 1/2 of the rise or fall time, the reflected signal from the receiving end will reach the driving end before the signal changes state. Conversely, the reflected signal will reach the drive end after the signal changes state. If the reflected signal is strong, the superimposed waveform may change the logic state. The following is about 12 Layer Taconic High Frequency Board related, I hope to help you better understand 12-Layer Taconic High Frequency PCB.

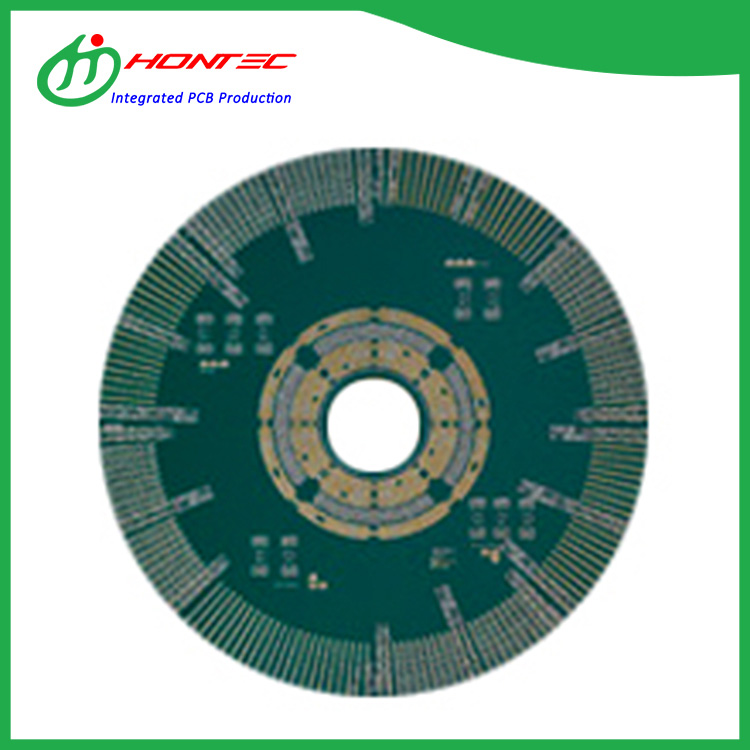

Quick Details of 12-Layer Taconic High Frequency PCB
Place of Origin:Guangdong, China
Brand Name:12-Layer Taconic High Frequency PCB Model Number:Rigid-PCB
Base Material:Taconic
Copper Thickness:1oz Board Thickness:1.6mm
Min. Hole Size:0.2mm Min. Line Width:5mil Min. Line Spacing:5mil
Surface Finishing:ENIG
Number of layers:12L PCB Standard:IPC-A-600
Solder Mask:Blue
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 12 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
