The delay per unit inch on the PCB is 0.167ns. However, if there are more vias, more device pins, and more constraints set on the network cable, the delay will increase. Generally, the signal rise time of high-speed logic devices is about 0.2ns. If there are GaAs chips on the board, the maximum wiring length is 7.62mm. The following is about RO3003 PCB related, I hope to help you better understand RO3003 PCB.

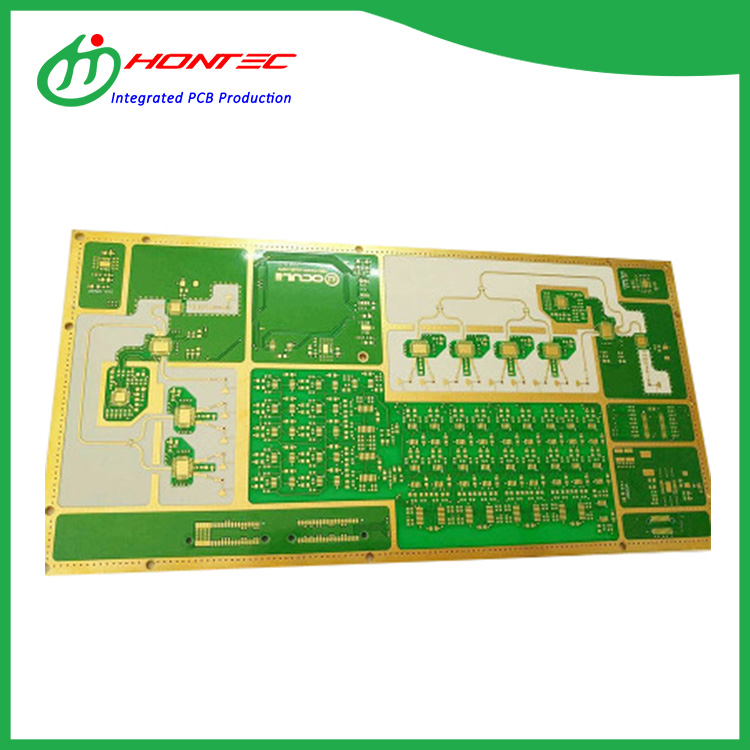

Quick Details of RO3003 PCB
Place of Origin:Guangdong, China
Brand Name:RO3003 High frequency with mixture PCB Model Number:Rigid-PCB
Base Material:Rogers and ShengYi
Copper Thickness:1oz Board Thickness:1.6mm
Min. Hole Size:0.2mm Min. Line Width:4.5mil Min. Line Spacing:4.5mil
Surface Finishing:ENIG
Number of layers:8L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 10 days

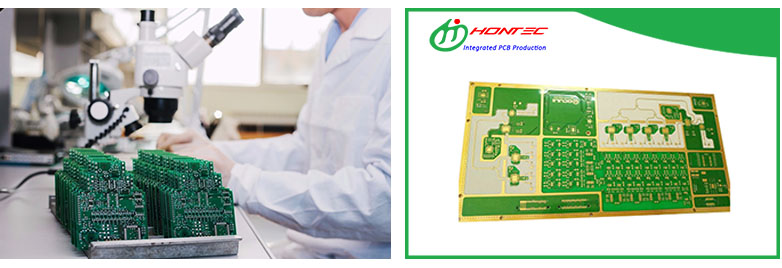

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
