At high speeds, Impedance control PCB traces are used as transmission lines, and electrical energy can be reflected back and forth, similar to the situation where ripples in lake water encounter obstacles. Controlled impedance traces are designed to reduce electronic reflections and ensure correct conversion between PCB traces and internal connections.

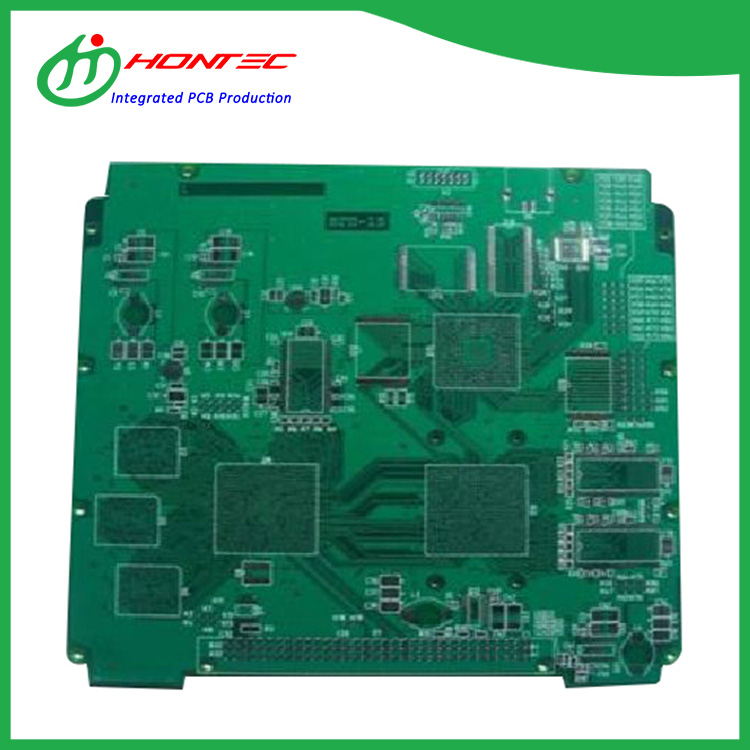

Quick Details of Impedance Control PCB
Place of Origin: Guangdong, China
Brand Name:Industrial control equipment PCB Model Number:Rigid-PCB
Base Material: ITEQ
Copper Thickness: 1oz Board Thickness: 1.6mm
Min. Hole Size: 0.2mm Min. Line Width: 3mil Min. Line Spacing: 3mil
Surface Finishing: ENIG
Number of layers : 12L PCB Standard: IPC-A-600
Solder Mask: Green
Legend:White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 7 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
