The high-frequency control board is mainly composed of a high-frequency induction heating main control board and two drives. The high-frequency board technology uses SG3525A as a PWM pulse. The output pulse frequency range is 20KHZ-60KHZ, the pulse interval is 180 degrees, and the dead time You can adjust it yourself. The following is about Double sided RO4350B PCB related, I hope to help you better understand Double sided RO4350B PCB.

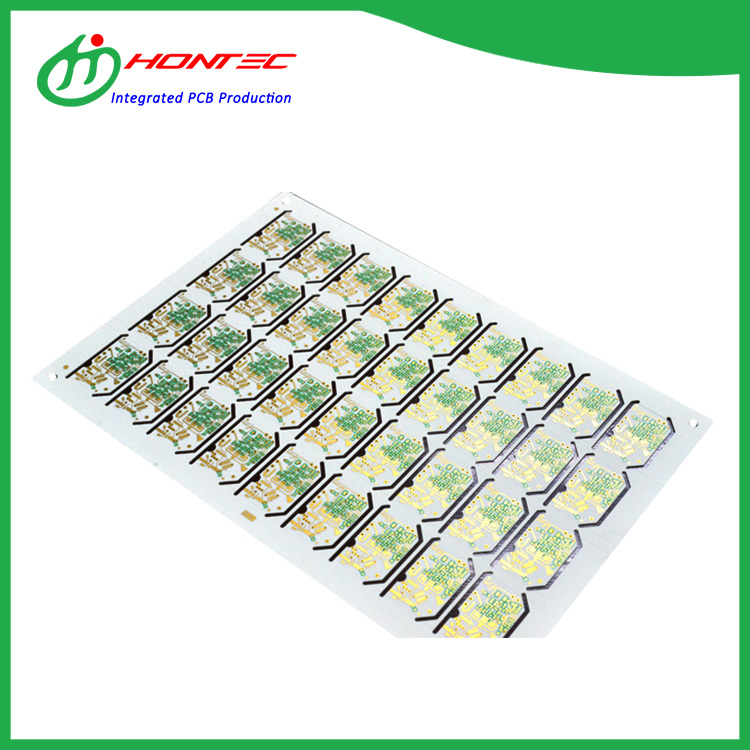

Quick Details of Double sided RO4350B PCB
Place of Origin:Guangdong, China
Brand Name:Microwave circuit board Model Number:Rigid-PCB
Base Material:Rogers
Copper Thickness:1oz Board Thickness:0.508mm
Min. Hole Size:0.2mm Min. Line Width:4mil Min. Line Spacing:4mil
Surface Finishing:ENIG
Number of layers:2L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 5 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
