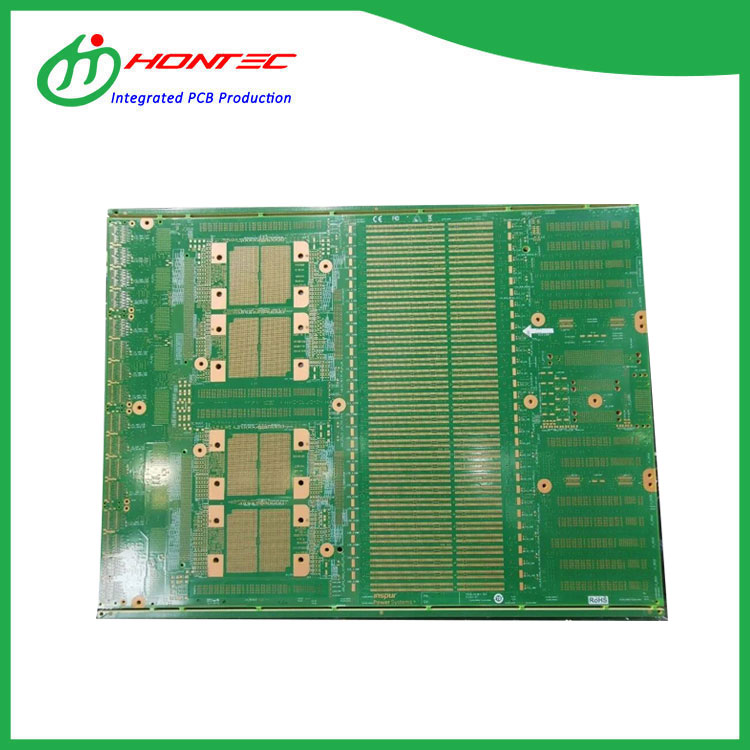

When the 40-layer M6G high speed PCB is close to the parallel high-speed differential signal line pair, in the case of impedance matching, the coupling of the two lines will bring many advantages. However, it is believed that this will increase the attenuation of the signal and affect the transmission distance.
Quick Details
Place of Origin: Guangdong, China
Brand Name: 40-layer M6G high speed PCB Model Number: Rigid-PCB
Base Material: Megtron6
Copper Thickness: 1oz Board Thickness: 6mm
Min. Hole Size: 0.35mm Min. Line Width: 3.5mil Min. Line Spacing: 3.5mil
Surface Finishing: ENIG
Number of layers: 40L PCB Standard: IPC-A-600
Solder Mask: Green
Legend: White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 20 days
