According to the use of high-end HDI board-3G board or IC carrier board, its future growth is very rapid: the world's 3G mobile phone growth will exceed 30% in the next few years, China will soon issue 3G licenses; IC carrier board industry consulting agency Prismark predicts China's forecasted growth rate from 2005 to 2010 is 80%, which represents the development direction of PCB technology. The following is about 2Step HDI PCB related, I hope to help you better understand 2Step HDI PCB.

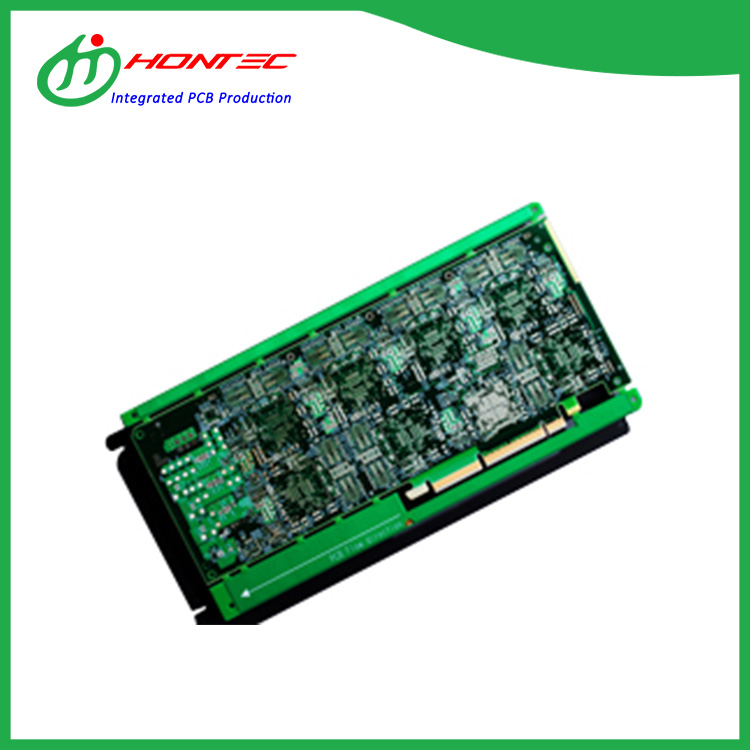

Quick Details of 2Step HDI PCB
Place of Origin:Guangdong, China
Brand Name:Consumer product PCB Model Number:Rigid-PCB
Base Material:ShengYi
Copper Thickness:1oz Board Thickness:1.6mm
Min. Hole Size:0.1mm Min. Line Width:3.5mil Min. Line Spacing:3.5mil
Surface Finishing:ENIG
Number of layers:16L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 14 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
