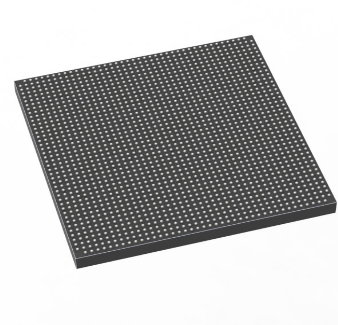

XCKU15P-L2FFVE1760E Kinex ® UltraScale+ ™ The device can achieve a balance between required system performance and extremely low power consumption, while supporting packet processing and DSP intensive functions, making it an ideal choice for wireless MIMO technology, Nx100G wired networks, as well as data center networks and storage acceleration applications
XCKU15P-L2FFVE1760E Kinex ® UltraScale+ ™ The device can achieve a balance between required system performance and extremely low power consumption, while supporting packet processing and DSP intensive functions, making it an ideal choice for wireless MIMO technology, Nx100G wired networks, as well as data center networks and storage acceleration applications.
Product attributes
Series: XCKU15P
Number of logic components: 1143450 LE
Adaptive Logic Module - ALM: 65340 ALM
Embedded memory: 34.6 Mbit
Number of input/output terminals: 724 I/O
Power supply voltage - minimum: 850 mV
Power supply voltage - maximum: 850 mV
Minimum working temperature: 0 ° C
Maximum working temperature:+110 ° C
Data rate: 32.75 Gb/s
Number of transceivers: 76
Installation style: SMD/SMT
Package/Box: FBGA-1760
Distributed RAM: 9.8 Mbit
Embedded Block RAM - EBR: 34.6 Mbit
Humidity sensitivity: Yes
Number of logical array blocks - LAB: 65340 LAB
Working power supply voltage: 850 mV
