24G High frequency PCB--24GHz microstrip array antenna, select 10mil or 20mil thickness for small array, 20mil thickness for large array, and 10mil thickness for RF board.The following is about 24G High frequency PCB, I hope to help you better understand 24G High frequency PCB.
18 layers copper paste plug hole PCB realizes high-density assembly of printed circuit boards and non-conductive copper paste for via plug holes of wiring. It is widely used in aviation satellites, servers, wiring machines, LED backlights, etc.The following is about 18 layers copper paste plug hole, I hope to help you better understand 18 layers copper paste plug hole.
17 layers ultra small size coil PCB--Compared with the module board, the coil board is more portable, small in size and light in weight. It has a coil that can be opened for easy access and a wide frequency range. The circuit pattern is mainly winding, and the circuit board with etched circuit instead of traditional copper wire turns is mainly used in inductive components. It has a series of advantages such as high measurement, high accuracy, good linearity, and simple structure.The following is about 17 layers ultra small size coil board, I hope to help you better understand 17 layers ultra small size coil board.
HDI board (High Density Interconnector), that is, high-density interconnection board, is a circuit board with a relatively high line distribution density using micro-blind and buried via technology.The following is about 10 layers of HDI PCB, I hope to help you better understand 10 layers of HDI PCB.

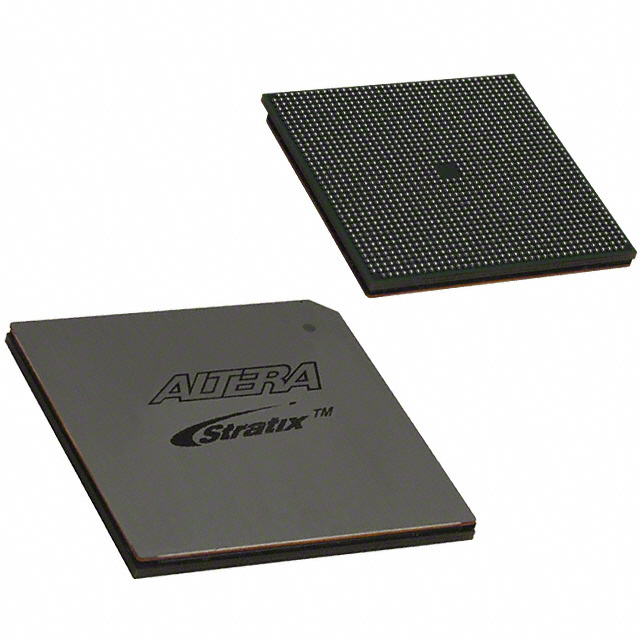

BGA is a small package on a pcb circuit board, and BGA is a packaging method in which an integrated circuit uses an organic carrier board.The following is about 8 layers EM-890 PCB, I hope to help you better understand 8 layers EM-890 PCB.
8-layers 3Step HDI PCB is pressed 3-6 layers first, then 2 and 7 layers are added, and finally 1 to 8 layers are added, a total of three times.The following is about 8 layers 3Step HDI, I hope to help you better understand 8 layers 3Step HDI.
