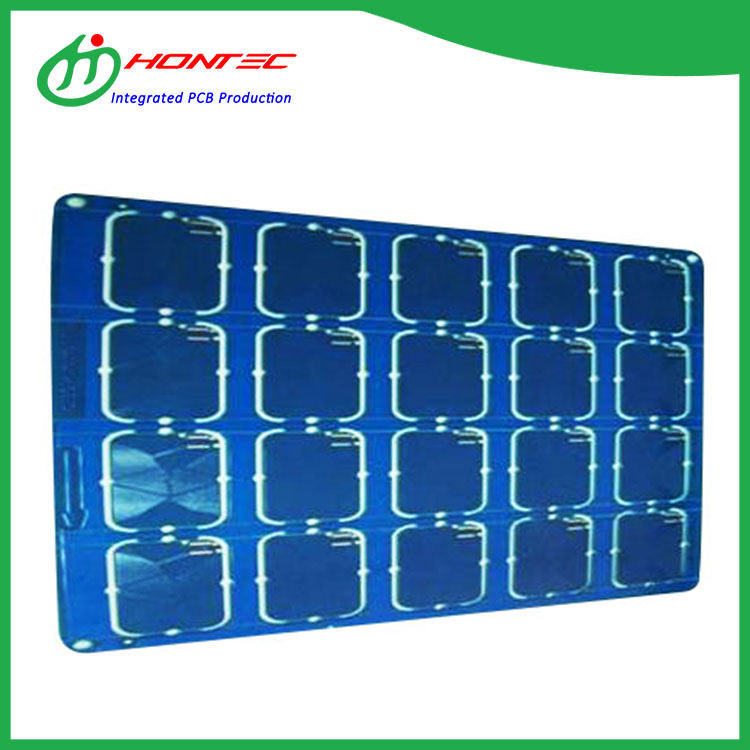

Coil board: the circuit pattern is mainly winding, and the circuit board is replaced with an etched circuit to replace the traditional copper wire turns.The following is about Planar Winding PCB related, I hope to help you better understand Planar Winding PCB.
Quick Details of Planar Winding PCB
Place of Origin: Guangdong, China
Brand Name: Industrial control PCB Model Number:Rigid-PCB
Base Material: ITEQ
Copper Thickness: 2oz Board Thickness:1.6mm
Min. Hole Size: 0.2mm Min. Line Width: 8mil Min. Line Spacing: 8mil
Surface Finishing: HASL-LF
Number of layers: 2L PCB Standard: IPC-A-600
Solder Mask: Blue
Legend: White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery:Within 6 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
