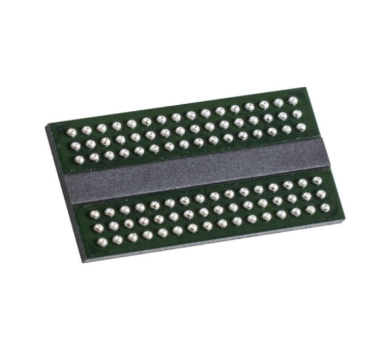

MT40A512M16TB-062E:R is a high-speed dynamic random access memory that is configured internally as 8 sets of DRAM in x16 configuration and 16 sets of DRAM in x4 and x8 configuration. DDR4 SDRAM uses the 8n refresh architecture to achieve high-speed operation. The 8n prefetch architecture is combined with an interface designed to transmit two data words per clock cycle on the I/O pins.
MT40A512M16TB-062E:R is a high-speed dynamic random access memory that is configured internally as 8 sets of DRAM in x16 configuration and 16 sets of DRAM in x4 and x8 configuration. DDR4 SDRAM uses the 8n refresh architecture to achieve high-speed operation. The 8n prefetch architecture is combined with an interface designed to transmit two data words per clock cycle on the I/O pins.
Product attributes
Product type: Dynamic Random Access Memory
Type: SDRAM - DDR4
Installation style: SMD/SMT
Package/Box: FBGA-96
Data bus width: 16 bits
Organization: 512 M x 16
Storage capacity: 8 Gbit
Access time: 160 ps
Power supply voltage - maximum: 1.26 V
Power supply voltage - minimum: 1.14 V
Minimum working temperature: 0 C
Maximum operating temperature:+95 ° C
application
Cloud servers and data centers
automobile
Interactive health counseling and personalized health monitoring
Industrial Internet of Things and Industry 4.0
Gaming PC
Edge and video surveillance servers
