​EP4CE115F29I7N - Cyclone ® IV E Field Programmable Gate Array (FPGA) IC The Cyclone IV E adopts an optimized low-power process, which has low power consumption, strong functionality, and low cost.

Model:EP4CE115F29I7N

Send Inquiry

Product Description

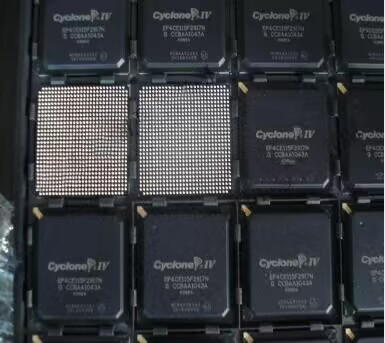

EP4CE115F29I7N - Cyclone ® IV E Field Programmable Gate Array (FPGA) IC

The Cyclone IV E adopts an optimized low-power process, which has low power consumption, strong functionality, and low cost.

Product attributes

LAB/CLB number 7155

Logic components/number of units 114480

Total RAM bits 3981312

I/O count 528

Voltage - Power supply 1.15V~1.25V

Installation type: Surface mount type

Working temperature -40 ° C~100 ° C (TJ)

Package/Shell 780-BGA

Supplier Device Packaging 780-FBGA (29x29)

Product features

The Cyclone ® IV E FPGA is suitable for various general-purpose logic, control planes, and other embedded control applications

Low cost, low-power FPGA structure:

6K to 150K logic elements

Up to 6.3Mb embedded memory

Up to 360 18x18 multipliers, suitable for DSP processing intensive applications

Up to 535 user inputs/outputs

Up to 8 phase-locked loops (PLLs) per device

Provide commercial and industrial temperature levels


application

broadcast

Consumer category

industry

wireless

Wired
